BPH01 pump head with flip design | Compact peristaltic pump head
Flip‑design pump head for easy tubing loading and low pulsation.
Description

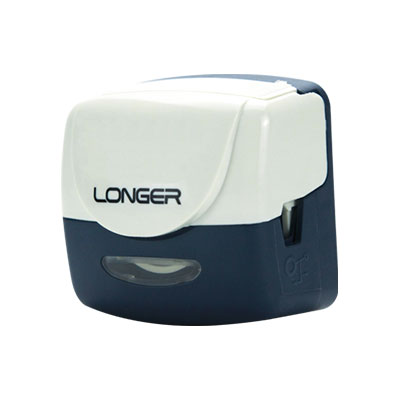

The BPH01 peristaltic pump head features a compact design and small footprint and is specifically developed for integration into OEM devices and instruments. Typical application areas include biopharmaceutical applications, medical devices, and IVD systems, where reliability and ease of handling are essential.

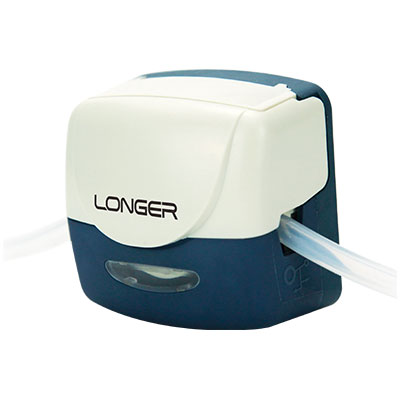

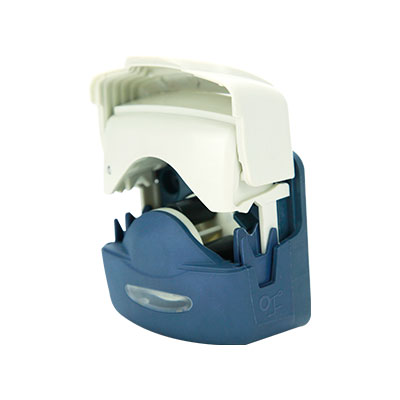

The flip‑type design is a key feature of the BPH01 and enables particularly easy and fast loading of the pump tubing. This significantly reduces setup and maintenance times and is ideal for devices that require frequent tubing changes.
The pump head is equipped with a four‑roller mechanism, which supports low‑pulsation pumping. This ensures smooth and uniform flow rates, positively contributing to process stability and dosing accuracy.
Longer tubing service life, controlled discharge pressure & visual status monitoring during operation
The spring‑loaded roller mechanism ensures consistent and controlled tubing compression. This contributes to:
- extended tubing service life,
- stable pressure control, and
- reduced wear.
A transparent viewing window allows easy monitoring of the operating status without the need to open the pump head—an additional advantage for maintenance‑friendly systems and continuous operation.
Specifications
Number of rollers
|
4
|
Number of channels
|
1
|
Stackable
|
No
|
Roller material
|
PA6+MoS2
|
Housing material
|
IXEF
|
Speed range (rpm)
|
Continuous operation ≤ 400 rpm Intermittent operation ≤ 600 rpm |
Weight (kg)
|
0.1
|
Compatible tubing
Tubing size
|
Tubing ID (mm)
|
Tubing OD (mm)
|
Flow rate @400 rpm (mL/min)
|
Flow rate @600 rpm (mL/min)
|
|---|---|---|---|---|
13#
|
0.8
|
4.0
|
14
|
21
|
14#
|
1.6
|
4.8
|
57
|
85
|
19#
|
3.2
|
6.4
|
117
|
175
|
16#
|
2.4
|
5.6
|
190
|
285
|
25#
|
4.8
|
8.0
|
353
|
530
|

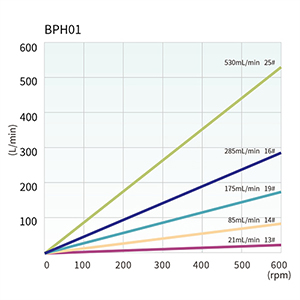

Flow curves

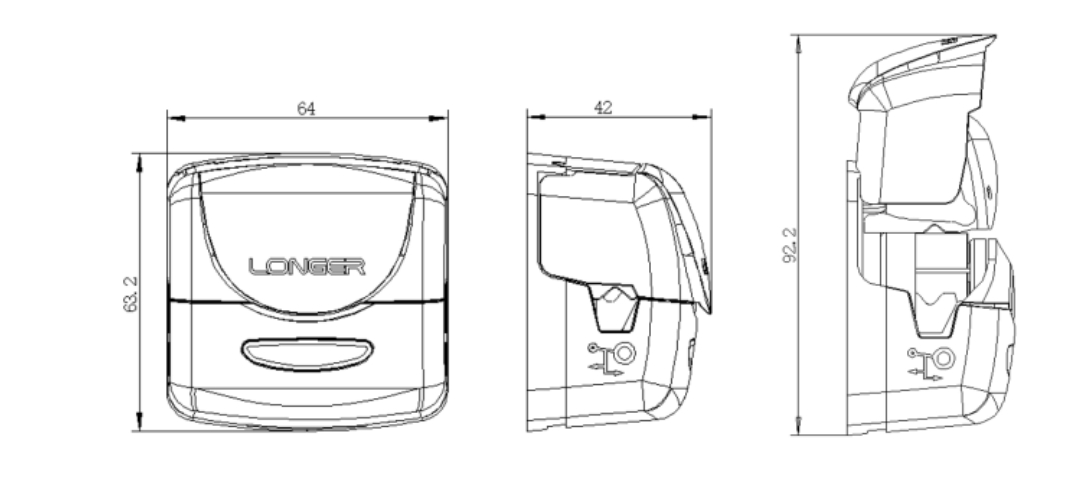

Dimensions
