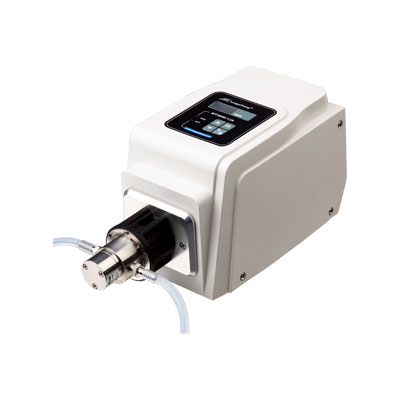

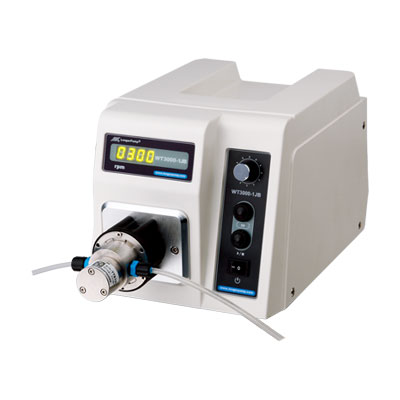

WT3000‑1JA & WT3000‑1JB magnetic micro gear pump for continuous flow applications
High‑precision magnetic micro gear pumps for continuous, low‑pulsation delivery at pressures of up to 8 or 14 bar
Description
These micro gear pumps enable highly precise, low‑pulsation fluid delivery at high system pressures within a flow rate range of 85.7 to 2,571.4 mL/min. Equipped with a brushless DC motor and pump heads made of 316 stainless steel, they offer maintenance‑free operation, high efficiency, and stable volumetric flow rates. Thanks to different pump head materials made of PEEK or PTFE, a wide variety of media can be reliably pumped.
- Highly precise, low‑pulsation fluid delivery for continuous flow applications
- Low‑pulsation pumping for stable and reliable processes
- High pressure capability for demanding applications
- High media compatibility through pump heads made of PEEK or PTFE
- Compact design with a robust stainless steel pump head
Versions:
- WT3000‑1JA: up to 8 bar
- WT3000‑1JB: up to 14 bar
Specifications of the pump system
Parameter
|
WT3000-1JA / WT3000-1JB
|
Speed range
|
300–3000 rpm
|
Speed resolution
|
1 rpm
|
Particle diameter in liquid
|
≤ 10 µm
|
Viscosity
|
≤ 200 cSt
|
Speed signal input
|
4–20 mA, 0.5–5 V, 1–10 V, 1–10 kHz (corresponding to 300–3000 rpm)
|
Start/Stop signal input
|
TTL signal
|
Communication interface
|
RS485
|
Dimensions (L × W × H)
|
232 × 142 × 149 mm (WT3000-1FA) 290 × 207 × 180 mm (WT3000-1FB) |
Power supply
|
AC 90–260 V / 50 W (WT3000-1FA) AC 220 V ±20 % / 150 W (WT3000-1FB) |
Operating conditions
|
0 to 40 °C
|
Relative humidity
|
< 80 %
|
IP rating
|
IP31
|
Weight
|
2.83 kg (WT3000-1FA) 5.1 kg (WT3000-1FB) |
Compatible pump heads and tubing connections
The WT3000 series is compatible with various micro gear pump heads, enabling different flow rate ranges and pressure levels. Depending on the pump head, flow performance, outlet pressure, and media temperature can be optimally adapted to the specific application.
Pump head
|
Gear material
|
Flow rate range (mL/min)
|
Outlet pressure (bar)
|
Media temperature (°C)
|
Weight (kg)
|
|---|---|---|---|---|---|
MG204XDOTT00000
|
PTFE
|
85.7 – 857.1
|
≤ 8 (WT3000‑1FA)
|
-45 to +120
|
3.25 (WT3000‑1FA)
|
MG204XD0PT00000
|
PEEK
|
85.7 – 857.1
|
≤ 8 (WT3000‑1FA) ≤ 14 (WT3000‑1FB) |
-45 to +120
|
3.25 (WT3000‑1FA) 5.39 (WT3000‑1FB) |
MG209XD0TT00000
|
PTFE
|
171.4 – 1,714.3
|
≤ 8 (WT3000‑1FA)
|
-45 to +120
|
3.26 (WT3000‑1FA)
|
MG209XD0PT00000
|
PEEK
|
171.4 – 1,714.3
|
≤ 8 (WT3000‑1FA) ≤ 9 (WT3000‑1FA) |
-45 to +120
|
3.26 (WT3000‑1FA) 5.40 (WT3000‑1FB) |
MG213XD0TT00000
|
PTFE
|
257.1 – 2,571.4
|
≤ 3 (WT3000‑1FA)
|
-45 to +120
|
3.28 (WT3000‑1FA)
|
MG213XD0PT00000
|
PEEK
|
257.1 – 2,571.4
|
≤ 3 (WT3000‑1FA) ≤ 9 (WT3000‑1FA) |
-45 to +120
|
3.28 (WT3000‑1FA) 5.42 (WT3000‑1FB) |
Downloads
WT3000 Datasheet 3 MB
