WT3000‑1FA/B dosing magnetic micro gear pump

Reproducible flow rates and dosing volumes at up to 8 or 14 bar

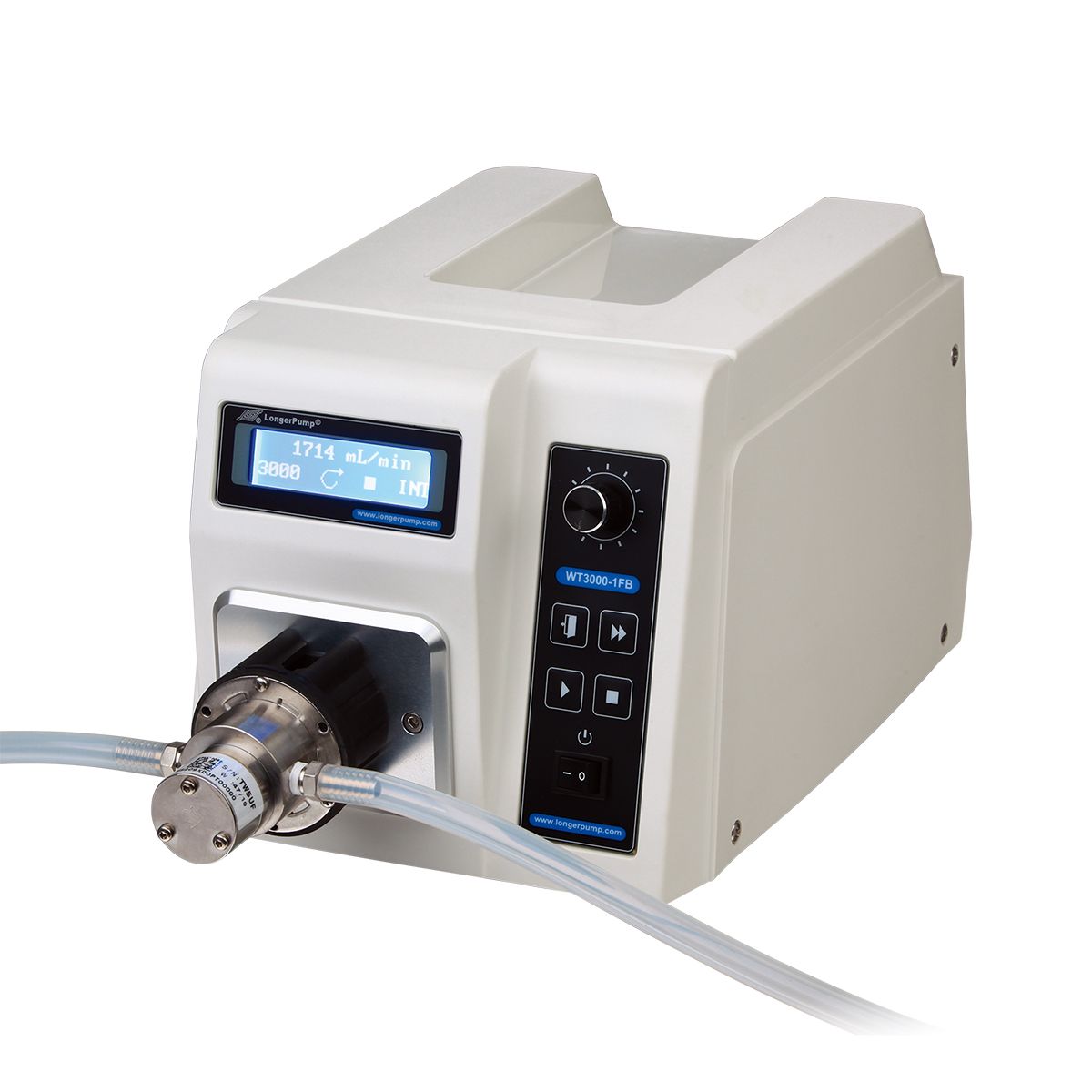

WT3000‑1FB dosing magnetic micro gear pump

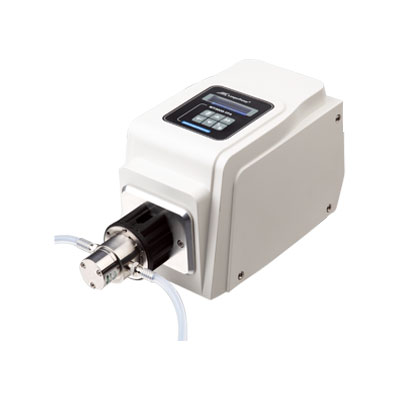

WT3000‑1FA dosing magnetic micro gear pump
WT3000‑1FB dosing magnetic micro gear pump
WT3000‑1FA dosing magnetic micro gear pump

Description

These magnetic micro gear pumps are precise delivery and dosing pumps for continuous flow applications as well as accurately controlled dosing processes. Thanks to flow and dosing modes, the pumps are ideally suited for laboratory, research, pharmaceutical, and industrial applications with high demands on accuracy and process stability.

They enable reproducible flow rates and dosing volumes even at elevated system pressures and are designed for reliable continuous operation.

  • High dosing and flow accuracy with a constant volumetric flow
  • Low‑pulsation delivery for stable and reliable processes
  • High pressure capability for demanding applications
  • Compact design with a robust stainless steel pump head

Versions:

  • WT3000‑1FA: up to 8 bar
  • WT3000‑1FB: up to 14 bar

    These pumps offer two operating modes:

    • Flow mode for constant delivery of defined flow rates
    • Dosing mode for precise dispensing of specified single or batch volumes

    Thanks to the finely resolved speed control, both small dosing volumes and continuous flow rates can be achieved with high accuracy.

    Specifications of the pump system

    Parameter
    WT3000-1FA / WT3000-1FB
    Speed range
    300–3000 rpm
    Speed resolution
    1 rpm
    Dispensing volume
    0.1 mL – 999 L
    Number of cycles
    0–9999 (“0” = unlimited continuous operation)
    Pause time
    1 s – 999 h (resolution: 0.1 s)
    Calibration time
    30 s – 1800 s (resolution: 1 s)
    Particle diameter in liquid
    ≤ 10 µm
    Viscosity
    ≤ 200 cSt
    Speed signal input
    4–20 mA, 0.5–5 V, 1–10 V, 1–10 kHz (corresponding to 300–3000 rpm)
    Start/Stop signal input
    TTL signal
    Speed output
    1.25 kHz – 12.5 kHz (corresponding to 300–3000 rpm)
    Start/Stop output
    OC gate signal
    Communication interface
    RS485
    Dimensions (L × W × H)
    232 × 142 × 149 mm (WT3000-1FA)
    290 × 207 × 180 mm (WT3000-1FB)
    Power supply
    AC 90–260 V / 50 W (WT3000-1FA)
    AC 220 V ±20 % / 150 W (WT3000-1FB)
    Operating conditions
    0 to 40 °C
    Relative humidity
    < 80 %
    IP rating
    IP31
    Weight
    2.83 kg (WT3000-1FA)
    5.1 kg (WT3000-1FB)

    Compatible pump heads and tubing connections

    The WT3000 Series is compatible with various micro gear pump heads, enabling different flow rate ranges and pressure levels. Depending on the pump head, flow performance, outlet pressure, and media temperature can be optimally adapted to the specific application.

    Pump head
    Gear material
    Flow rate range (mL/min)
    Outlet pressure (bar)
    Media temperature (°C)
    Weight (kg)
    MG204XDOTT00000
    PTFE
    85.7 – 857.1
    ≤ 8 (WT3000‑1FA)
    -45 to +120
    3.25 (WT3000‑1FA)
    MG204XD0PT00000
    PEEK
    85.7 – 857.1
    ≤ 8 (WT3000‑1FA)
    ≤ 14 (WT3000‑1FB)
    -45 to +120
    3.25 (WT3000‑1FA)
    5.39 (WT3000‑1FB)
    MG209XD0TT00000
    PTFE
    171.4 – 1,714.3
    ≤ 8 (WT3000‑1FA)
    -45 to +120
    3.26 (WT3000‑1FA)
    MG209XD0PT00000
    PEEK
    171.4 – 1,714.3
    ≤ 8 (WT3000‑1FA)
    ≤ 9 (WT3000‑1FA)
    -45 to +120
    3.26 (WT3000‑1FA)
    5.40 (WT3000‑1FB)
    MG213XD0TT00000
    PTFE
    257.1 – 2,571.4
    ≤ 3 (WT3000‑1FA)
    -45 to +120
    3.28 (WT3000‑1FA)
    MG213XD0PT00000
    PEEK
    257.1 – 2,571.4
    ≤ 3 (WT3000‑1FA)
    ≤ 9 (WT3000‑1FA)
    -45 to +120
    3.28 (WT3000‑1FA)
    5.42 (WT3000‑1FB)
