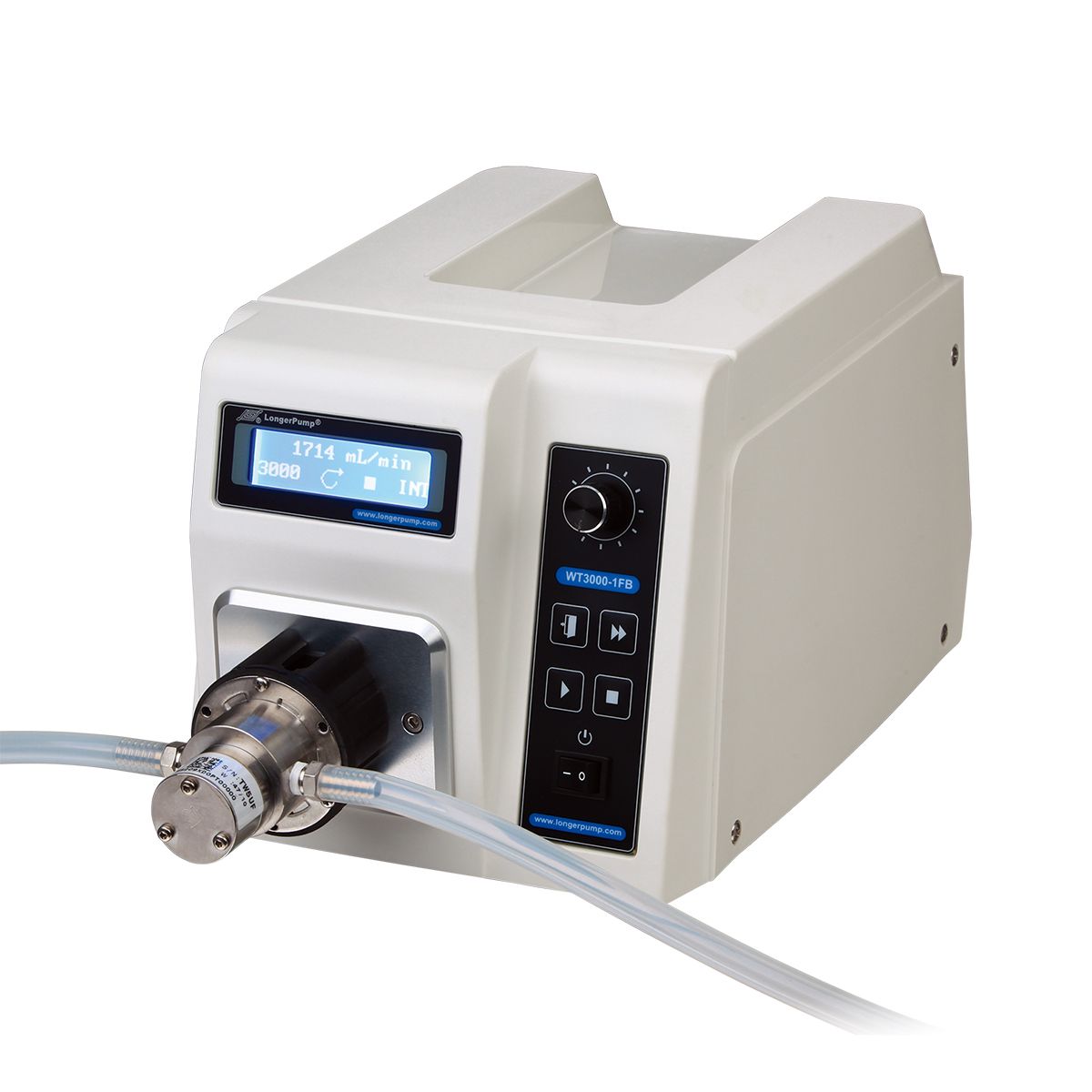

WT3000‑1FB Dosing Magnet‑Driven Micro Gear Pump up to 14 bar
Reproducible flow rates and dosing volumes up to 14 bar
Description
This magnet‑driven micro gear pump is a precision pumping and dosing solution for both continuous flow applications and accurately controlled dosing processes. With dedicated flow and dispensing modes, the pump is ideally suited for laboratory, research, pharmaceutical, and industrial applications with high demands on accuracy and process stability.
It enables reproducible flow rates and dosing volumes even at elevated system pressures and is designed for reliable continuous operation.
- High dosing and pumping accuracy with constant flow rates
- Low‑pulsation flow for stable processes
- High pressure capability for demanding applications
- Compact design with a robust stainless steel pump head
The pump features two operating modes:
- Flow mode for the continuous delivery of defined flow rates
- Dispensing mode for the precise dispensing of predetermined single or batch volumes
Thanks to the finely adjustable speed control, both small dosing volumes and continuous flow rates can be achieved with high accuracy.
Pump System Specifications
Flow range
|
85.7–2,571.4 ml/min
|
Compatible pump heads
|
MG204, MG209, MG213
|
Gear material
|
PEEK, PTFE
|
Housing material
|
316L stainless steel
|
Pressure resistance
|
up to ≤ 0.8 MPa (depending on pump head) up to ≤ 1.4 MPa (depending on pump head) |
Speed range
|
300–3,000 rpm
|
Resolution
|
1 rpm
|
Dispensing volume
|
0.1 ml – 999 l
|
Particle diameter in liquid
|
≤ 10 µm
|
Viscosity
|
≤ 200 cSt
|
Display
|
4-digit LED display for speed indication
|
Operating mode
|
continuous pumping
|
Control
|
rotary knob, external signals, communication control
|
External control functions
|
start/stop, speed
|
Cycle count
|
0 – 9,999 (“0” = unlimited continuous operation) |
Pause time
|
1 s – 999 h (resolution: 0.1 s) |
Calibration time
|
30 s – 1,800 s (resolution: 1 s) |
Communication
|
RS485
|
Dimensions (L × W × H)
|
290 × 207 × 180 mm
|
Power supply
|
AC 220 V ±20% / 150 W, 50/60 Hz AC 110 V ±20% / 150 W, 50/60 Hz (optional) |
Operating temperature
|
0 °C to 40 °C
|
Relative humidity
|
< 80%
|
IP rating
|
IP31
|
Weight
|
5.1 kg
|
Compatible Pump Heads and Tubing Connections
The WT3000 series is compatible with various micro gear pump heads, allowing different flow ranges and pressure levels. Depending on the selected pump head, flow rate, outlet pressure, and media temperature can be optimally adapted to the respective application.
Pump Head
|
Gear Material
|
Flow Range (ml/min)
|
Outlet Pressure (bar)
|
Media Temperature (°C)
|
Weight (kg)
|
|---|---|---|---|---|---|
MG204XD0PT00000
|
PEEK
|
85.7 – 857.1
|
≤ 14
|
−45 to +120
|
5.39
|
MG209XD0PT00000
|
PEEK
|
171.4 – 1,714.3
|
≤ 9
|
−45 to +120
|
5.4
|
MG213XD0PT00000
|
PEEK
|
257.1 – 2,571.4
|
≤ 8
|
−45 to +120
|
5.42
|
