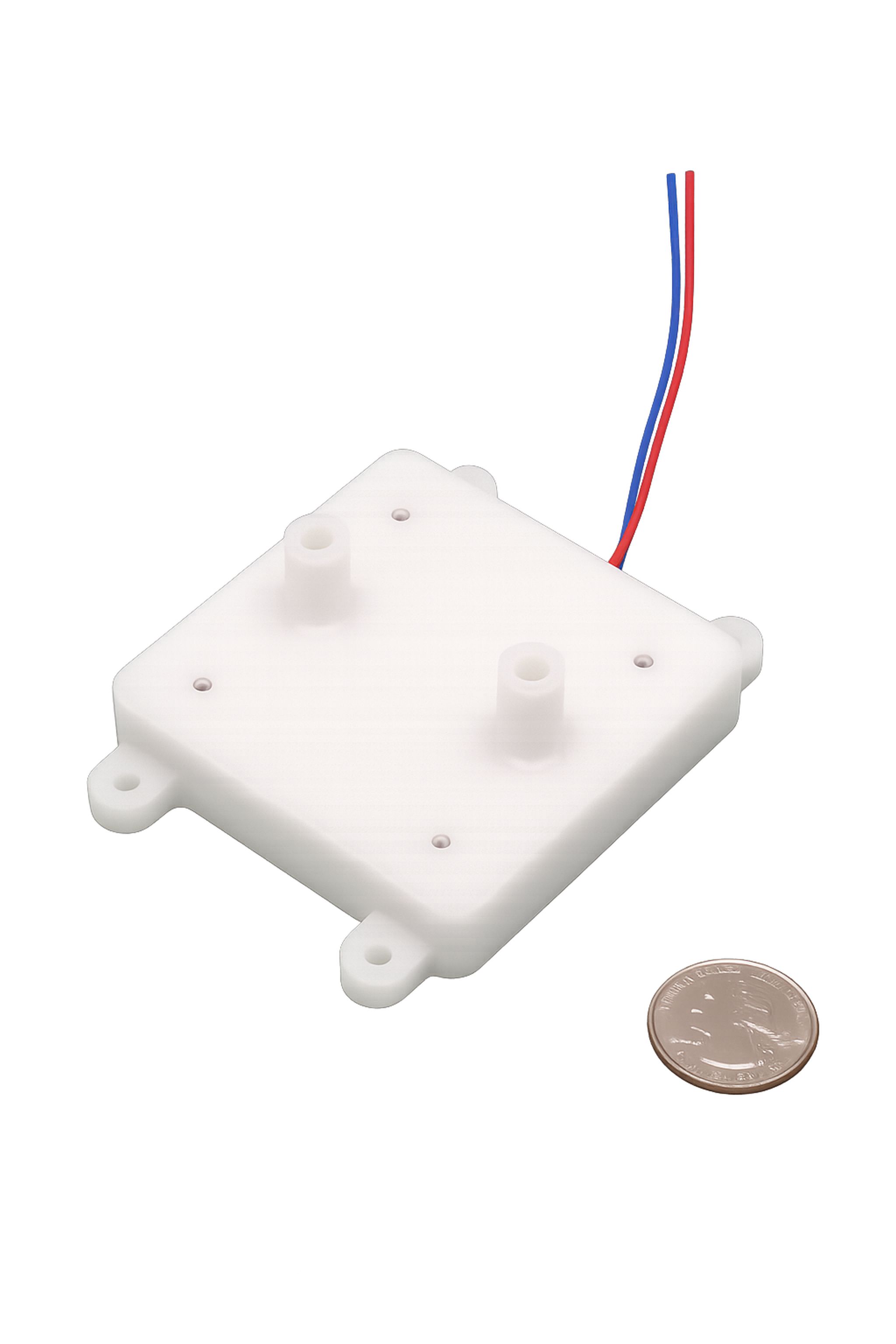

High‑flow piezo pump (700 ml/min)
Under development
Description
This high-flow piezo pump enables water‑cooled heat‑exchange systems in extremely compact installation spaces where air cooling reaches its limits. The pump combines high flow rates up to 700 ml/min, low power consumption, and precise flow control, making it ideal for electronics cooling, laboratory equipment, and OEM integration.
Key Benefits
- High flow rate: up to 700 ml/min
- Compact & efficient: low energy consumption and quiet operation
- Precise control: stable flow for sensitive applications
- Flexible connections: hose barb and manifold versions available
- Reduced piping: simplified installation and increased design flexibility
Typical Applications
- Water cooling for electronic devices and power electronics
- Cleaning-liquid supply units
- Water supply systems for fuel cells
- Battery cooling for small electric vehicles (EVs)
- Compact OEM systems for laboratory, medical, and industrial applications
Specifications
Pump Type
|
Piezoelectric diaphragm pump
|
Port Connection
|
Hose barb (optional: Manifold)
|
Rated Voltage
|
100–280 Vp-p
|
Wetted Materials
|
EPDM (Ethylene Propylene Diene Monomer), stainless steel, POM, PI, epoxy-based adhesive
|
Flow Rate
|
700 ml/min (at 280 Vp-p, 100 Hz)
|
Discharge Pressure
|
150 mbar (at 280 Vp-p, 100 Hz)
|
Maximum Operating Frequency
|
40–100 Hz
|
Outer Dimensions
|
68 × 92 × 16 mm
|
