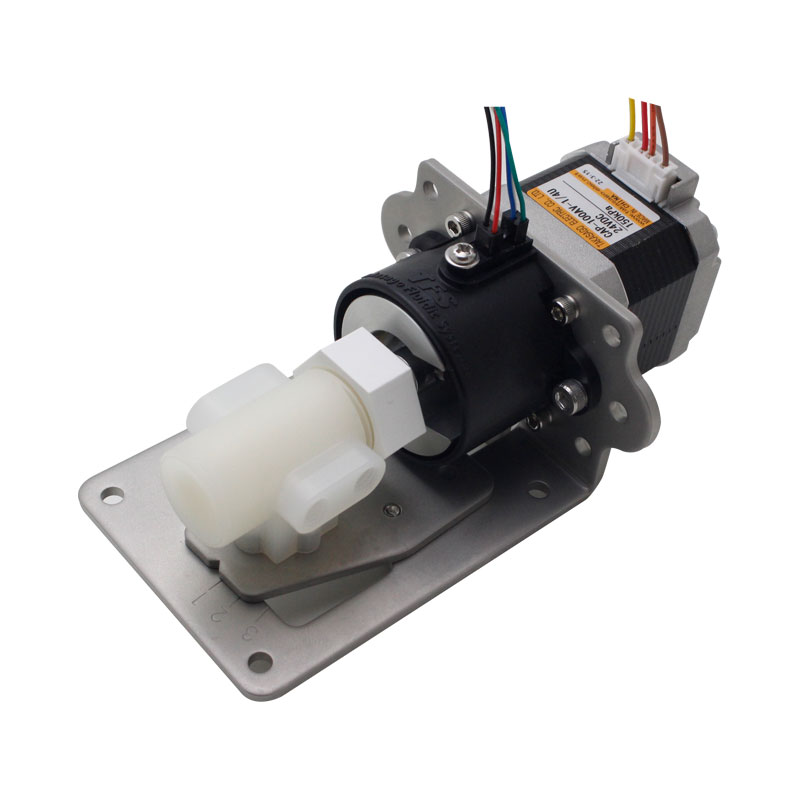

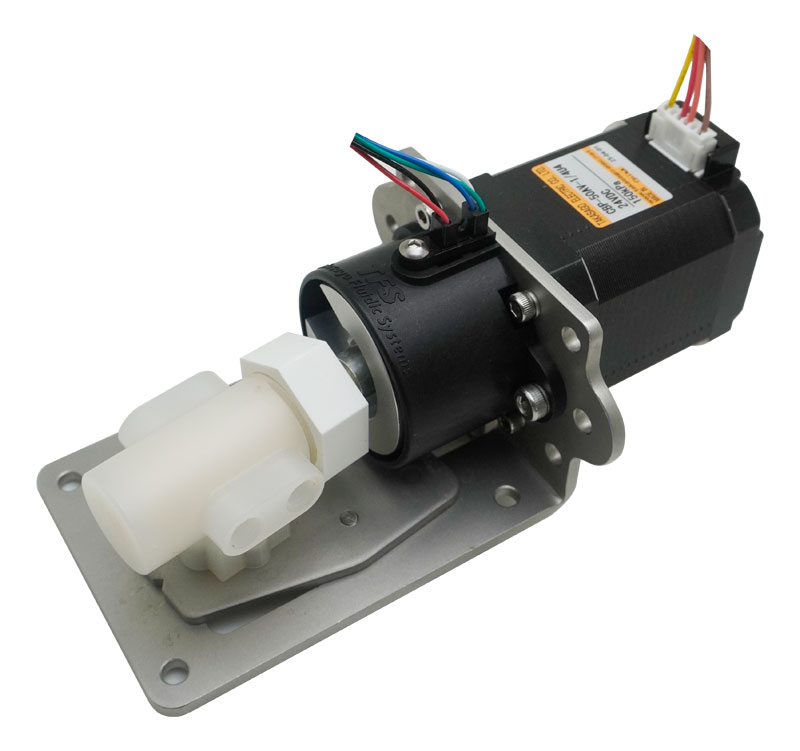

Piston Pump CAP-Serie with high repeatability

Versions: 100µl/shot, 200µl/shot, 300µl/shot

Description

The rotary piston pumps have a high repeatability of only 0.5%, therefore they are a very precise solution for liquid dosing.

Due to the piston system the pumping of high viscous media is possible.

The wetted materials PVDF, PTFE and Ceramics have a high chemical resistance.

With liquid volumes of 100 μl, 200 μl and 300 μl per shot, the smallest amounts can be dosed continuously.

Versions	50 µl / shot \| 100 μL/shot \| 200 μL/shot \| 300 μL/shot
Discharge Accuracy	CV < 0.5 % *
Speed Range	5 - 300 RPM
Discharge Pressure	1.50 bar
Fluid Temperature	0 - 60°C
Ambient Temperature	0 - 40°C
Motor	2-phase bipolar stepping motor
Related Voltage	24 VDC
Port Connection	M6 \| 1/4 -28UNF
Wetted Materials	PVDF, PTFE, Ceramic

* Tested under 100 RPM, 10 stroke withoutback pressure
